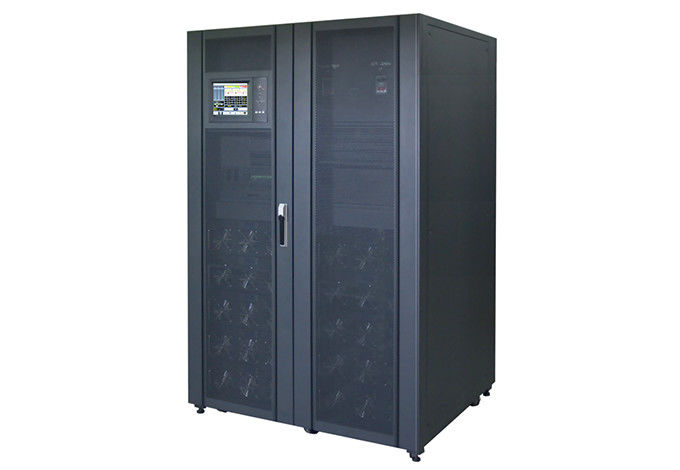

240V 10KW UPS Bettery System LiFePo4 Lithium Battery Uninterrupted Power Supply

I'm Online Chat Now

240V 10KW UPS Bettery System LiFePo4 Lithium Battery Uninterrupted Power Supply

240V 10KW UPS Bettery System LiFePo4 Lithium Battery Uninterrupted Power Supply
240V 10KW UPS Bettery System LiFePo4 Lithium Battery Uninterrupted Power Supply

Large Image :  240V 10KW UPS Bettery System LiFePo4 Lithium Battery Uninterrupted Power Supply

Product Details:
Place of Origin: China
Brand Name: Qiyuan
Certification: CE, IEC, MSDS, UN38.3
Model Number: UPJ10KDD-220-48
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD/CNY, Unit
Packaging Details: wooden case
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500 set per month

240V 10KW UPS Bettery System LiFePo4 Lithium Battery Uninterrupted Power Supply

Description
Battery Type: LFP Battery Rated Power: 1-10KW
Power Factor: 0.9 Frequency: 45~60Hz
Rated Voltage: 220/230/240VAC Voltage Range: 140~295VAC
No. Of Phases: Single Phase 3 Wire Efficiency: >96%
Battery Voltage: 38.4-51.2VDC Life Cycle: 3000 Times
Installation: Rack/tower Application: UPS System, Back Up Power
OEM/customization: Acceptable
Highlight:

Uninterrupted home ups system

,

10KW UPS Bettery System

,

240v home ups system

Product Features

  • Output power factor as high as 0.9, load ability;
  • Efficiency above 95%, reducing energy consumption;
  • Use DSP digital control technology, pure sine wave power supply is stable and reliable;
  • Use high stability of the lithium iron phosphate batteries, safe and reliable;
  • Lithium battery management solutions for special purpose, with triple loop over voltage protection, preset temperature, pressure switch interface;
  • Wide working temperature range, the discharge temperature range can reach to -20 ℃ to 50 ℃;
  • 90 ~ 300 v ultra-wide input voltage and 40 ~ 70 hz frequency, wide frequency can be set for generator application;
  • Charger current range 3 ~ 12A adjustable;
  • Intelligent configuration, supports output for transformer voltage compensation;
  • RS485, RS232, SNMP communication function;

240V 10KW UPS Bettery System LiFePo4 Lithium Battery Uninterrupted Power Supply 0
