Product Details:
|
| Battery Type: | LFP Battery | Rated Power: | 1-10KW |
|---|---|---|---|
| Power Factor: | 0.9 | Frequency: | 45~60Hz |
| Rated Voltage: | 220/230/240VAC | Voltage Range: | 140~295VAC |
| No. Of Phases: | Single Phase 3 Wire | Efficiency: | >96% |
| Battery Voltage: | 38.4-51.2VDC | Life Cycle: | 3000 Times |
| Installation: | Rack/tower | Application: | UPS System, Back Up Power |
| OEM/customization: | Acceptable | ||

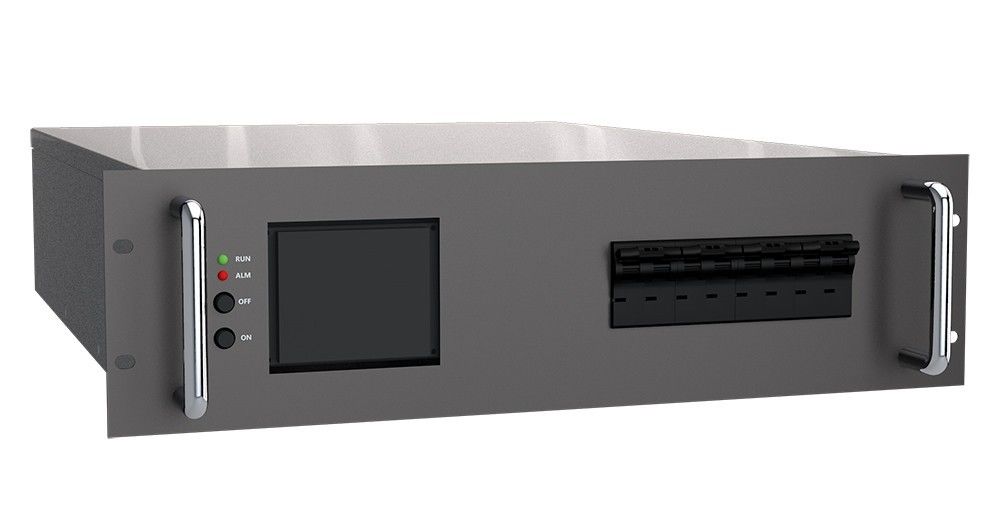

| Highlight: | 8KW UPS Battery System,240v battery backup power home,battery backup power home Uninterrupted |
||
Product features:
| Model | UPJ1KDD-220-36 | UPJ2KDD-220-48 | UPJ3KDD-220-48 | UPJ6KDD-220-48 | UPJ10KDD-220-192 |
| Power KVA/KW | 1/0.9 | 2/1.8 | 3/2.7 | 6/5.4 | 10/9 |
| Input | |||||
| Rated voltage | 220/230/240VAC(configurable) | ||||
| Voltage range | 140~295±5VAC(100%),90~140VAC (50%) | ||||
| Frequency | 45~60HZ | ||||
| Power factor | 0.99 | ||||
| Standard current | 4A | 9A | 13A | 27A | 45A |
| Harmony wave distortion | ≤6% | ≤5% | |||
| Output | |||||
| No of phases | Single phase 3 wire L+N+PE | ||||
| Rated voltage | 220/230/240VAC(configurable) | ||||
| Voltage accuracy | ±1% | ||||
| Output frequency accuracy |
Grid input mode:Sync with bypass input； Battery mode:50/60Hz±1% |
||||
| Output power factor | 0.9 | ||||
| Total voltage harmony wave distortion | Linear load＜3%,non-linear load＜5% | ||||
| Load peak ratio | 3:1 | ||||
| Overload capacity: Grid input |
Continuous <110%,110~130% for 1min,130~150% for 10S, 150% and above for 200ms |
||||
| Overload capacity: battery |
Continuous <105%,105~130% for 1min,130~150% for 3S, 150% and above for 200ms |
||||
| System | |||||
| System efficiency | Online＞90%,ECO＞94% | Online＞92%,ECO＞96% | |||
| Replace time | 0ms | ||||
| Communication | RS232(standard),optional:USB, SMNP, RS485, dry contact | ||||
| Display | LCD | ||||
| Battery | |||||
| DC voltage | 36 | 48 | 48 | 48 | 192 |
| Battery (LFP) | 38.4V6AH | 51.2V12AH | 51.2V18AH | 51.2V30Ah | - |
| Battery structure | Rack/tower | Tower | - | ||
| Continuous charging current | 4~8A | 10~40A | 4~12A | ||
| Rack size | 482*320*86 | 482*430*86 | 480*450*132 | 480*450*86 | 482*420*86 |
| Tower size | 300*145*232 | 380*190*232 | 412*190*220 | 460*190*310 | - |
| Work/test temperature | -10~45℃/-25~55℃ | ||||
| Noise | ＜50dB | ||||
