Product Details:
|
| Battery Type: | Lifepo4 Battery | Enclosure Material: | ABS |
|---|---|---|---|
| IP Level: | IP67 | Rated Voltage: | 12V |
| Discharge Current: | 30A | Warranty: | 3 Years |
| Application: | Backup Power, Replacement Of Lead Acid Battery | Nominal Capacity: | 50Ah - 400ah |
| Cycle Life: | > 3000 Times | Rated Capacity: | 24Ah |
| Compact Desiged: | With Built-in BMS | Operating Temperature: | -20℃-60℃ |
| Highlight: | portable 12v 24ah lifepo4 battery,backup power 12v 24ah lifepo4 battery,ABS 12v 24ah lithium battery |
||

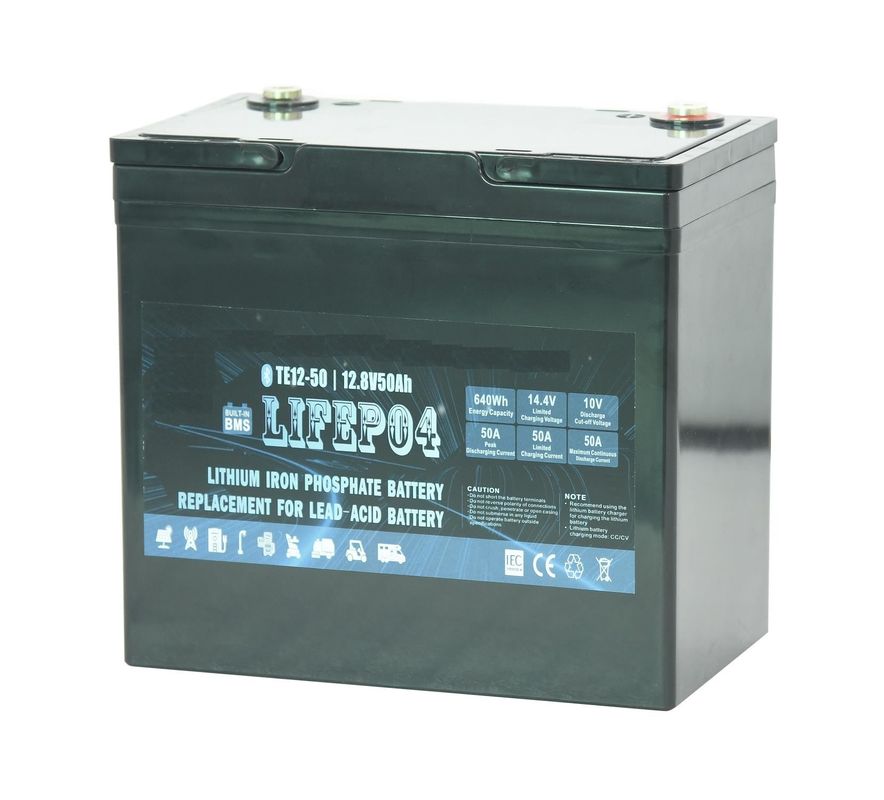

12V 24AH Portable LiFePo4 Battery lithium battery
Product Features:
| Model | TE12-24 | TE12-50 | TE12-75 | TE12-100 | TE12-150 | TE12-200 | TE12-300 |
| Voltage (VDC) | 12.8 | ||||||
| Capacity (WH) | 307 | 640 | 960 | 1280 | 1920 | 2560 | 3840 |
| Charging current (A) | 12 | 25 | 38 | 50 | 100 | 100 | 150 |
| Discharging current (A) | 30 | 50 | 80 | 100 | 100 | 150 | 150 |
| Charging voltage (V) | 14.2 | ||||||
| Protection voltage (V) | 10.4 | ||||||
| Working temperature | Charging temperature 0~45℃,discharging temperature -20~60℃ | ||||||
| Protection level | IP67 | ||||||
| Dimension | 181*77*167 | 229*138*217 | 260*168*209 | 330*172*214 | 483*170*240 | 522*240*218 | 520*269*220 |
