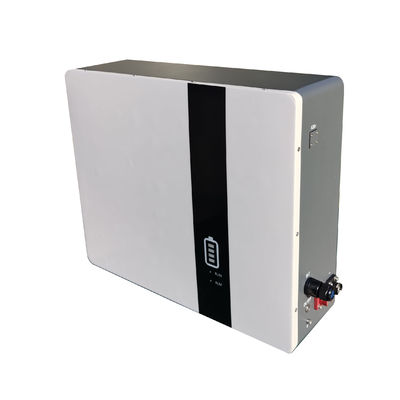

PV 3kW Domestic Battery Energy Storage 190-270v Hybrid LiFePo Battery Lithium Battery

I'm Online Chat Now

PV 3kW Domestic Battery Energy Storage 190-270v Hybrid LiFePo Battery Lithium Battery

PV 3kW Domestic Battery Energy Storage 190-270v Hybrid LiFePo Battery Lithium Battery
PV 3kW Domestic Battery Energy Storage 190-270v Hybrid LiFePo Battery Lithium Battery

Large Image :  PV 3kW Domestic Battery Energy Storage 190-270v Hybrid LiFePo Battery Lithium Battery

Product Details:
Place of Origin: China
Brand Name: Qiyuan
Certification: CE, IEC, MSDS, UN38.3
Model Number: TXFPV-3k-H
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD/CNY, Unit
Packaging Details: wooden case
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 100 set per month

PV 3kW Domestic Battery Energy Storage 190-270v Hybrid LiFePo Battery Lithium Battery

Description
Battery Type: LiFePO4 Battery Warranty: 3 Years
Application: Home Storage System Rated Voltage: 180-270V
Capacity: 100AH To 1200Ah Power: 3-5KW
Color: Black, White Shell Or Customized Type: Deep Cycle Battery
Terminal: Copper Terminal Cycle Life: More Than 2000 Cycles
Material: Eco Friendly Design Life: 8-10 Years
Highlight:

3kW Domestic Battery Energy Storage

,

180v domestic solar battery

,

270v domestic solar battery

Product Features

  • Use high stability lithium iron phosphate batteries, safe and reliable;
  • Voltage, current, temperature detection and protection function and short circuit protection function, as well as the meter function;
  • Battery capacity and cyclic number calculation function;
  • Discharge temperature range can reach to 20 ℃ to 50 ℃;
  • Low voltage switch and sleep and wake up function, have remote communications sensei function;
  • LCD and LED display functions available;
  • Parallel communication function, RS485 communication and PC monitoring function, and CAN communication;
  • Charging current limit and pre-charge functions, capable of parallel with multiple units (compatible with old & new batteries), can be customized to parallel with lead-acid batteries;
  • Historical data record function;
  • Built-in automatic fire extinguishing system, enhanced secure;
  • Supports communication with most inverters in the market, supports change of communication protocols;



Model TXF25.6-200BG TXF51.2-100BG TXF51.2-200BG TXF51.2-100JJ TXF25.6-100JJ
Capacity WH 5120 5120 20240 5120 2560
Rated voltage V 25.6 51.2 25.6
Charging current A 120 100 100 100 120
Charging current limit A 120 100 100 100 120
Max discharging current A 3min 150 120 120 120 150
Charging voltage V 28.8 57.6 28.8
Protection voltage V 20 40 20
Display LCD screen + LED lights
Cooling Natural air
Protection level IP40
Relative humidity 0~95%
Working temperature Charge 0~45℃,discharge -20~50℃
CAN Configurable
RS485 Configurable
Noise 0dB
Parallel application Support
Structure Wall mounted Rack design
Dimension mm 380*685*170 380*685*170 660*685*170 482*460*176 482*460*176
