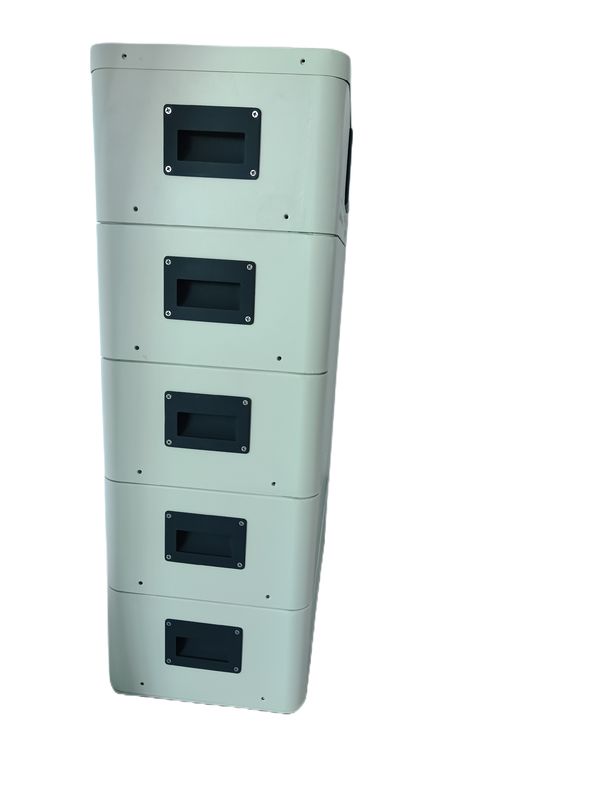

Product Details:
|
| Battery Type: | LiFePO4 Battery | Warranty: | 3 Years |
|---|---|---|---|
| Application: | Home Storage System | Rated Voltage: | 48V |
| Output Power: | 5KW | Capacity: | 100AH To 1200Ah |
| Color: | Black&White Shell Or Customized | Type: | Deep Cycle Battery |
| Terminal: | Copper Terminal | Cycle Life: | More Than 2000 Cycles |
| Material: | Eco Friendly | Design Life: | 8-10 Years |
| Highlight: | 5kw battery stacks,200AH Domestic Battery Energy Storage,Domestic Battery Energy Storage LiFePo4 |
||
This product specification applies to the company's lithium iron phosphate battery pack, which is suitable for invert er, photovoltaic invert er, UPS applications. The model, specification, size, performance, maintenance and test method of the product are specified.
| Item | Specifications | Remarks |
| Model number | TDD-512-52AH | |
| Rated voltage (V) | 51.2 * N | |
| Rated capacity (Ah) | 52AH | 25C 0.5C Discharge |
| Maximum charging voltage (V) | 56*N (configurable) | |
| Maximum protection voltage for charge (V) | 58.4 * N | |
| Minimum protection voltage V | 40*N | |
| Maximum charging current (A) | 50 | |
| Standard charging current (A) | 25 | |
| Maximum continuous discharge current (A) | 50 | |
| Peak discharge current (A) | 75 | Within 5S |
| Number of cell cycle lives | 6000 | |
| Ambient temperature for charging (° C) | 0 ~ 45 | |
| Discharge operating environment temperature (° C) | - 20 ~ 50 | |
| Ambient humidity | 0 ~ 95% | |
| Protection level | IP43 |
| Noise dB | 0 | |
| Control box parameters | ||
| Product model number | TDDK102-512-50 | |
| Standard DC voltage range VDC | 102 ~ 512 | |
| Control box maximum current A | 50 | |
| Ac input voltage VAC | 90~265V | |
| Elevation m | 4000 | |
| Power distribution switch | There are | |
| Display | 5" | |
| Communication method | RJ45, RS485, CAN | |
| Cooling method | Natural cooling | |
| Size (mm) | 600 * 300 * 190 | Net size |
| Weight (kg) | 15KG | Net weight |
| Battery module | ||
| Product model number | TDDM51.2-52 | |
| Rated voltage (V) | 51.2 | |
| Rated capacity (Ah) | 52 | |
| Maximum charging voltage (V) | 57.6 | |
| Maximum protection voltage of charge (V) | 58.4 | |
| Minimum protection voltage V | 40 | |
| Maximum charging current (A) | 50 | |
| Standard charging current (A) | 25 | |
| Maximum continuous discharge current (A) | 50 | |
| Peak discharge current (A) | 75 | |
| Size mm | 600 * 300 * 170 | |
| Weight KG | 31 | |
| Base | ||
| Size | 595 * 295 * 40 | |
| Weight KG | 5 | |
