Product Details:
|
| Product Name: | MPPT Hybrid Solar Inverter | Type: | Hybrid Solar Inverter |
|---|---|---|---|
| Application: | Solar Power System Home | Input Voltage: | 200-1000V DC |
| Output Power: | 1~12kW | Output Voltage: | 110V/220V/230V/240V |
| Output Frequency: | 50Hz/60Hz | Output Waveform: | Prue Sine Wave |
| Output Current: | 0~75A | Output Type: | Multiple |
| Efficiency: | >97% | Protection: | Overlaod Over-heat,over Tempereture And Short Circuit,Overvoltage,overcharge |
| Weight: | 28kg | Warranty: | 5 Years |
| Display: | LCD | Color: | Gray Or OEM |
| IP Level: | IP65 | ||
| Highlight: | mppt 10kw hybrid solar inverter,200v hybrid inverter solar system,1000v hybrid inverter solar system |
||
This Single-phase Hybrid Inverter is suitable for North America use, applicable for villa, communication base station, nomadic area, farm, residential power station, field power supply
1. Advanced
* Maximum efficiency up to 98.2%
* 4 independent MPPT design, making full use of light energy in different directions.
* Distributed virtual power station management mode.
* Remote monitoring of computers and mobile phones
2. Flexible
* The model covers 5-10kVA,with unified apprearance design.
* Wide battery input range, compatible with a variety of lithium batteries and lead-acid.
3. Reliable
* Battery reverse connect protection, the charge and discharge are controlled by intelligent software to improve the battery life.
* Input and output lightning protection, PV arcing detection.
* Discharge at full power and disconnect the charger automatically when the battery is ful.
* Off grid full power output, transient 1.5 times overload, soft start mode, with air conditioning, water pump and other loads.
* Insulation detection, leakage battery, ground fault detection, island protection to prevent electric shock.
4. Design

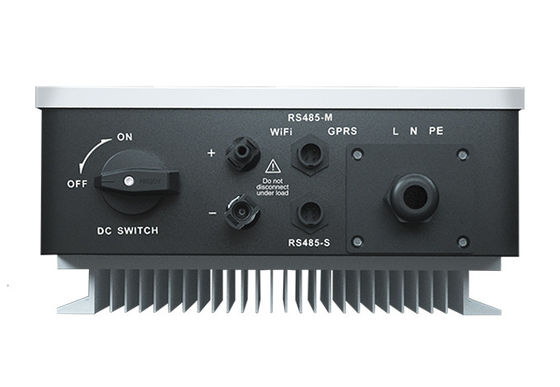

* Elegant appearance, convenient wiring.
* IP65 design, natural cooling, external fan free design, low noise , improved service life.
| Input (PV) | ||||
| Max. PV Input Power | 7.5KW | 9KW | 12KW | 13KW |
| Max. PV Input Voltage | 500V | |||
| Start Voltage | 120V | |||
| MPP Voltage Range | 125V~500V | |||
| Rated MPPT Voltage Range | 360V | |||
| Max. Input Current per MPPT | 12A | |||
| No. of MPPT/String | 4/1 | |||
| Output (AC) | ||||
| Max. Output Current | 24A | 28.8A | 38.3A | 47.8A |
| Rated Power | 5kVA | 6kVA | 8kVA | 10kVA |
| Rated output voltage | 120/240 (Split phase), 208 (2/3 phase), 230 (single phase) | |||
| Operating Voltage Range | 176V~270V | |||
| Rated Frequency | 50Hz/60Hz | |||
| Power Factor | 1 | |||
| THDi | < 3% | |||
| Output (EPS) | ||||
| Rated Power | 5kVA | 6kVA | 8kVA | 10kVA |
| Rated Voltage | 120/240 (Split phase), 208 (2/3 phase), 230 (single phase) | |||
| Rated Current | 24A | 28.8A | 38.3A | 47.8A |
| Rated Frequency | 50Hz/60Hz | |||
| Automatic Switching Time | <20ms | |||
| Overload Capability | 120%, 60S / 150%, 1S | |||
| THDU | <2% | |||
| Battery | ||||
| Battery Voltage Range | 40-58V | |||
| Max. Charging Voltage | 58V | |||
| Charge/Discharge Current | 120A/120A | 135A/135A | 190A/190A | 210A/210A |
| Battery type | Lithium | |||
| Communication | CAN/RS485 | |||
| Efficiency | ||||
| Max. DC Efficiency | 98.2% | |||
| European Efficiency | 97.2% | |||
| MPPT Efficiency | 99.9% | |||
| Battery Charge/Discharge Efficiency | 95.5% | |||
| Communication | ||||
| Display | LCD, touch screen | |||
| Communication | RS485/CAN/DRM, Optional: Wifi/LAN | |||
| Standard | ||||
| Certificates | CE | |||
| General Data | ||||
| Dimensions (W x H x D ) | 430 x 710 x 220 mm | |||
| Weight | 30kG | |||
| Operation Temperature | -25℃~+60℃ | |||
| Colling Method | Forced air cooling | |||
| Protection Level | IP65/NEMA 3R | |||
| Noise | <29dB | |||
| Max. Operation Altitude | 5000M (derate above 2000M) | |||
| Relative Humidity | 0~95% | |||
| Power Consumption | <3W | |||
