Product Details:
|
| Product Name: | MPPT Hybrid Solar Inverter | Type: | Hybrid Solar Inverter |
|---|---|---|---|
| Application: | Solar Power System Home | Input Voltage: | 200-1000V DC |
| Output Power: | 1~12kW | Output Voltage: | 110V/220V/230V/240V |
| Output Frequency: | 50Hz/60Hz | Output Waveform: | Prue Sine Wave |
| Output Current: | 0~75A | Output Type: | Multiple |
| Efficiency: | >97% | Protection: | Overlaod Over-heat,over Tempereture And Short Circuit,Overvoltage,overcharge |
| Weight: | 28kg | Warranty: | 5 Years |
| Display: | LCD | Color: | Gray Or OEM |
| IP Level: | IP65 | ||
| Highlight: | 7kw rack mount solar inverter,mppt rack mount solar inverter,ip65 hybrid inverter with mppt charge controller |
||

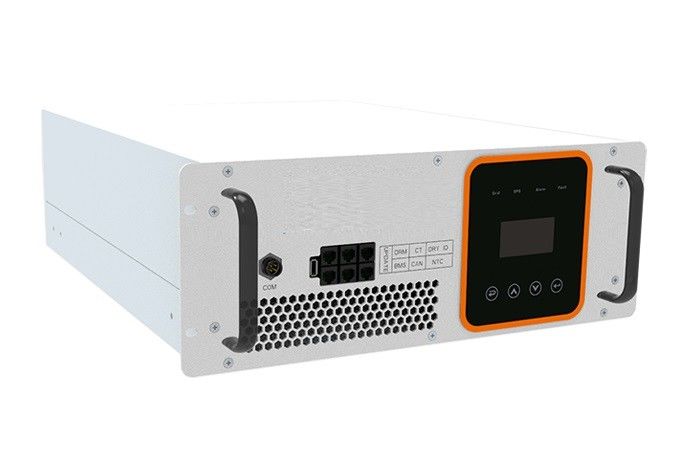

7KW Rack Mount Hybrid Solar Inverter Mppt Solar Charge Controller Home Energy System
This Single-phase Hybrid Inverter is suitable for North America use, applicable for villa, communication base station, nomadic area, farm, residential power station, field power supply
1. Advanced
* Maximum efficiency up to 98.2%
* 4 independent MPPT design, making full use of light energy in different directions.
* Distributed virtual power station management mode.
* Remote monitoring of PC and mobile phones.
2. Flexible
* The model covers 5-10kVA,with unified apprearance design.
* Wide battery input range, compatible with a variety of lithium batteries and lead-acid.
3. Reliable
* Battery reverse connect protection, the charge and discharge are controlled by intelligent software to improve the battery life.
* Input and output lightning protection, PV arcing detection.
* Discharge at full power and disconnect the charger automatically when the battery is ful.
* Off grid full power output, transient 1.5 times overload, soft start mode, with air conditioning, water pump and other loads.
* Insulation detection, leakage battery, ground fault detection, island protection to prevent electric shock.
4. Design
* Elegant appearance, convenient wiring.
* IP21 design, natural cooling, external fan free design, low noise , improved service life.
| Input (PV) | ||
| Max. PV Input Power | 7KW | |
| Max. PV Input Voltage | 550V | |
| Start Voltage | 120V | |
| MPP Voltage Range | 125V~500V | |
| Rated MPPT Voltage Range | 360V | |
| Max. Input Current | 14A | |
| No. of MPPT/String | 2/1 | |
| Output (AC) | ||
| Max. Output Current | 21.7A | 26A |
| Rated Power | 5kW | 6kW |
| Rated Voltage | 230V, L + N+PE | |
| Operating Voltage Range | 180V~280V | |
| Rated Frequency | 50Hz/60Hz | |
| Power Factor | 1 | |
| THDi | < 3% | |
| Output (EPS) | ||
| Rated Power | 5kVA/5kW | 6kVA/6kW |
| Rated Voltage | 230Vac | |
| Rated Current | 21.7A | 26A |
| Rated Frequency | 50Hz/60Hz | |
| Automatic Switching Time | <20ms | |
| Overload Capability | 110%, 60S / 120%, 30S / 150%, 10S | |
| THDU | <2% | |
| Battery | ||
| Battery Voltage Range | 40V~58V | |
| Max. Charging voltage | 58V | |
| Charge/Discharge Current | 95A/104.2A | 95A/110A |
| Battery type | Lithium | |
| Communication | CAN/RS485 | |
| Efficiency | ||
| Max. DC Efficiency | 97.6% | |
| European Efficiency | 97% | |
| MPPT Efficiency | 99.9% | |
| Battery Charge/Discharge Efficiency | 95.5% | |
| Communication | ||
| Display | LCD | |
| Communication | RS485/CAN/DRM, Optional: Wifi/LAN | |
| Standard | ||
| Certificates | CE | |
| General Data | ||
| Dimensions (W x H x D ) | 550 x 515 x 200 mm | |
| Weight | 25kG | |
| Operation Temperature | -25℃~+60℃ | |
| Colling Method | Forced air cooling | |
| Protection Level | IP21 | |
| Noise | <50dB | |
| Max. Operation Altitude | 5000M (derate above 2000M) | |
| Relative Humidity | 0~95% | |
| Power Consumption | <3W | |
