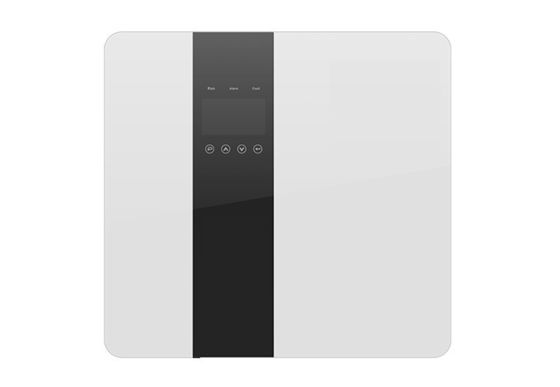

Product Details:
|
| Product Name: | MPPT Hybrid Solar Inverter | Type: | Hybrid Solar Inverter |
|---|---|---|---|
| Application: | Solar Power System Home | Input Voltage: | 200-1000V DC |
| Output Power: | 1~12kW | Output Voltage: | 110V/220V/230V/240V |
| Output Frequency: | 50Hz/60Hz | Output Waveform: | Prue Sine Wave |
| Output Current: | 0~75A | Output Type: | Multiple |
| Efficiency: | >97% | Protection: | Overlaod Over-heat,over Tempereture And Short Circuit,Overvoltage,overcharge |
| Weight: | 28kg | Warranty: | 5 Years |
| Display: | LCD | Color: | Gray Or OEM |
| Highlight: | 4kw mppt solar inverter,mppt solar inverter single phase,mppt 4kw hybrid inverter |
||
Product Features
| Input (PV) | |||||
| Max. PV Input Power | 4.6KW | 6KW | 7KW | ||
| Max. PV Input Voltage | 500V | ||||
| Start Voltage | 120V | ||||
| MPP Voltage Range | 125V~500V | ||||
| Rated MPPT Voltage Range | 360V | ||||
| Max. Input Current per MPPT | 14A | ||||
| No. of MPPT/String | 2/1 | ||||
| Output (AC) | |||||
| Max. Output Current | 13A | 17.4A | 21.7A | ||
| Rated Power | 3kVA | 4kVA | 5kVA | ||
| Rated output voltage | 230V, L + N + PE | ||||
| Operating Voltage Range | 180V~280V | ||||
| Rated Frequency | 50Hz/60Hz | ||||
| Power Factor | 1 | ||||
| THDi | < 3% | ||||
| Output (EPS) | |||||
| Rated Power | 3kVA | 4kVA | 5kVA | ||
| Rated Voltage | 230V | ||||
| Rated Current | 13A | 17.4A | 21.7A | ||
| Rated Frequency | 50Hz/60Hz | ||||
| Automatic Switching Time | <20ms | ||||
| Overload Capability | 120%, 30S / 150%, 10S | ||||
| THDU | <2% | ||||
| Battery | |||||
| Battery Voltage Range | 40-58V | ||||
| Max. Charging Voltage | 58V | ||||
| Charge/Discharge Current | 95A/62.2A | 95A/83.3A | 95A/104.2A | ||
| Battery type | Lithium | ||||
| Communication | CAN/RS485 | ||||
| Efficiency | |||||
| Max. DC Efficiency | 98.2% | ||||
| European Efficiency | 97.2% | ||||
| MPPT Efficiency | 99.9% | ||||
| Battery Charge/Discharge Efficiency | 95.5% | ||||
| Communication | |||||
| Display | LCD, touch screen | ||||
| Communication | RS485/CAN/DRM, Optional: Wifi/LAN | ||||
| Standard | |||||
| Certificates | CE | ||||
| General Data | |||||
| Dimensions (W x H x D ) | 550 x 7515x 200 mm | ||||
| Weight | 26kG | ||||
| Operation Temperature | -25℃~+60℃ | ||||
| Colling Method | Forced air cooling | ||||
| Protection Level | IP65/NEMA 3R | ||||
| Noise | <35dB | ||||
| Max. Operation Altitude | 5000M (derate above 2000M) | ||||
| Relative Humidity | 0~95% | ||||
| Power Consumption | <3W | ||||
