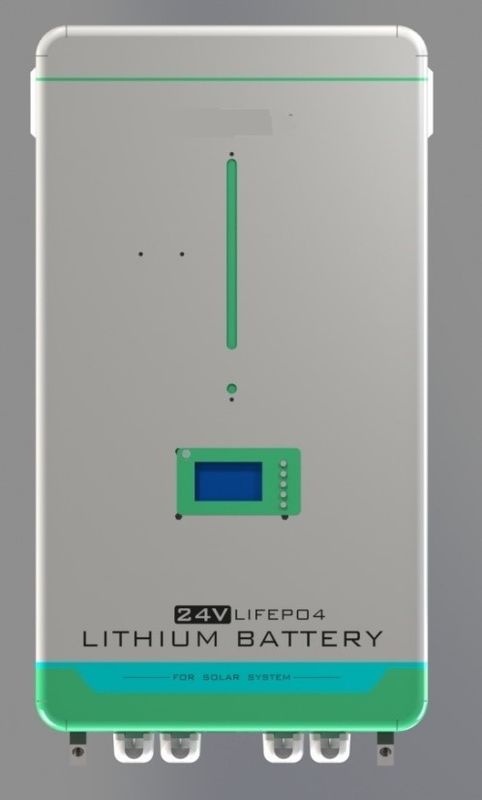

25.6V 200AH Domestic Solar Energy Storage Systems 1200ah Wall Mounted Battery

I'm Online Chat Now

25.6V 200AH Domestic Solar Energy Storage Systems 1200ah Wall Mounted Battery

25.6V 200AH Domestic Solar Energy Storage Systems 1200ah Wall Mounted Battery
25.6V 200AH Domestic Solar Energy Storage Systems 1200ah Wall Mounted Battery 25.6V 200AH Domestic Solar Energy Storage Systems 1200ah Wall Mounted Battery

Large Image :  25.6V 200AH Domestic Solar Energy Storage Systems 1200ah Wall Mounted Battery

Product Details:
Place of Origin: China
Brand Name: Qiyuan
Certification: CE, IEC, MSDS, UN38.3
Model Number: TXF25.6-200BG
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD/CNY, Unit
Packaging Details: wooden case
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 100 set per month

25.6V 200AH Domestic Solar Energy Storage Systems 1200ah Wall Mounted Battery

Description
Battery Type: LiFePO4 Battery Warranty: 3 Years
Application: Home Storage System Capacity: 100AH To 1200Ah
Color: Black&White Shell Or Customized Type: Deep Cycle Battery
Terminal: Copper Terminal Cycle Life: More Than 2000 Cycles
Material: Eco Friendly Design Life: 8-10 Years
Highlight:

25.6V domestic solar energy storage systems

,

200AH domestic solar energy storage systems

,

1200ah wall mounted battery

Product Features

  • Use high stability lithium iron phosphate batteries, passed CE, UL certification, safe and reliable;
  • Voltage, current, temperature detection and protection function and short circuit protection function, as well as the meter function;
  • Battery capacity and cyclic number calculation function;
  • Wide working temperature range, the discharge temperature range can reach to 20 ℃ to 50 ℃;
  • Low voltage switch and sleep and wake up function, have remote communications sensei function;
  • LCD and LED display functions available;
  • Parallel communication function, RS485 communication and PC monitoring function, and CAN communication;
  • Charging current limit and pre-charge functions, capable of parallel with multiple units (compatible with old & new batteries), can be customized to parallel with lead-acid batteries;
  • Historical data record function;
  • Built-in automatic fire extinguishing system, enhanced secure;
  • Supports communication with most inverters in the market, supports change of communication protocols;
Model TXF25.6-200BG TXF51.2-100BG TXF51.2-200BG TXF51.2-100JJ TXF25.6-100JJ
Capacity WH 5120 5120 20240 5120 2560
Rated voltage V 25.6 51.2 25.6
Charging current A 120 100 100 100 120
Charging current limit A 120 100 100 100 120
Max discharging current A 3min 150 120 120 120 150
Charging voltage V 28.8 57.6 28.8
Protection voltage V 20 40 20
Display LCD screen + LED lights
Cooling Natural air
Protection level IP40
Relative humidity 0~95%
Working temperature Charge 0~45℃,discharge -20~50℃
CAN Configurable
RS485 Configurable
Noise 0dB
Parallel application Support
Structure Wall mounted Rack design
Dimension mm 380*685*170 380*685*170 660*685*170 482*460*176 482*460*176
