Product Details:
|
Function: | Backup Power, Peak Load Shifting | Communication Protocol: | Modbus, CAN, Ethernet |
---|---|---|---|
Battery: | LiFePo4 | Certifications: | CE, UL, TUV |
Model: | Energy Storage System | Ess Container: | 20ft |
Voltage: | Varies Depending On Model | Cycle Life: | Up To 6,000 Cycles |
Highlight: | 98% Efficiency bess battery,6000 Cycles BESS Battery Storage System,98% Efficiency bess system |

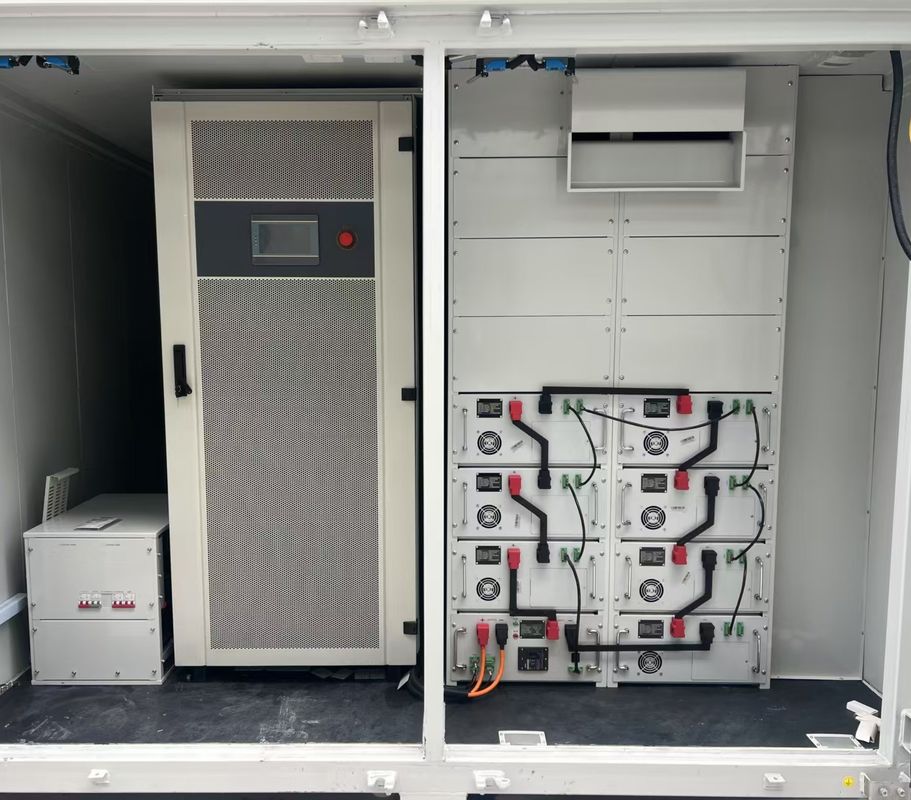

This series of products is a specialized line from our company designed for a range of inverters, DC loads, and DC power storage applications. Powered by safe and dependable LiFePO4 batteries, this series is known for its excellent safety features and extended lifespan.
The design incorporates a two-tier architecture, where cells, modules, and systems work together to create a comprehensive communication and management system. Operating in parallel, this system offers remote data acquisition, analysis, control, alarm functionalities, as well as protection features.
Lithium iron phosphate batteries are compliant with the CE standard. They ensure product safety through features such as no fire occurrence after thermal runaway and integrated module-level fire protection. They are equipped with Level 3 fire protection and have direct parallel connections between clusters.
When operating with 3 or more clusters in parallel, these batteries incorporate a fault exit mechanism. Additionally, they offer remote monitoring and maintenance functions, making them suitable for various scenarios including indoor and outdoor environments.
Suitable for a variety of mainstream hybrid inverters.
Suitable for DC loads.
Energy storage converters.
Suitable for inverters.
Special battery applications.
Product Customization Services for the BESS Battery Energy Storage System:
Brand Name: QIYUAN
Model Number: EST100KW-215KWH
Place Of Origin: China
Certification: UN38.3, IEC
Minimum Order Quantity: 1
Packaging Details: Container/Enclosre
Supply Ability: 20 Units/Month
Voltage: Varies Depending On Model
Dimensions: Varies Depending On Model
Application: Renewable Energy Integration, Grid Stabilization, Backup Power
Battery: LiFePo4
Function: Backup Power, Peak Load Shifting
EST050512- 100WP |
EST100512- 200WP |
EST160512- 200WP |
EST241768- 200WP |
|
Battey parameters |
||||
Rated Voltage |
512VDC |
512VDC |
512VDC |
768VDC |
Capacity |
51KWH |
102KWH |
160KWH |
241KWH |
Charging voltage |
552~560VDC |
552~560VDC |
552~560VDC |
828~840VDC |
Discharge voltage |
448~576VDC |
448~576VDC |
448~576VDC |
672~864VDC |
Max charging current |
100A |
150A |
150A |
150A |
Max discharging current |
120A |
200A |
200A |
200A |
Battery cycles |
4000 |
4000 |
6000 |
6000 |
DOD |
80% |
|||
System parameters |
||||
Working temperature |
-30~50℃(derate above 50℃) |
|||
Storage temperature |
0~40℃ |
|||
Humidity |
0~95% no condensation |
|||
Control mode |
EMS and remote control |
|||
Cooling |
Smart HVAC |
|||
Fire protection system |
Module-level aerosol / heptafluoropropane |
|||
System protection |
With an emergency power-off protection function. |
|||
Installation / IP level |
Outdoor / IP54 |
|||
Communication |
Ethernet / CAN / RS485 |
|||
Altitude |
2000m,derate above 2000m |
|||
Dimensions |
800*1200*2200 |
1300*1200*2000 |
1300*1200*2300 |
|
Weight |
750KG |
1100KG |
1450KG |
2050KG |
Certification |
UN38.3 |
|||
Standards |
Meets IEC62619 ICE61000 |
