Product Details:
|
Dimensions: | Varies Depending On Model | Function: | Backup Power, Peak Load Shifting |
---|---|---|---|
Ess Container: | 20ft | Cycle Life: | Up To 6,000 Cycles |
Certifications: | CE, UL, TUV | Model: | Energy Storage System |
Capacity: | Varies Depending On Model | Communication Protocol: | Modbus, CAN, Ethernet |
Highlight: | All In One Energy Storage System,Made Easy bess storage system,Peak Load Shifting Energy Storage System |
This series of products is our company's series specifically designed for various inverters, DC loads, and DC power storage. This series uses safe and reliable LiFePO4 batteries. It features good safety and long life.

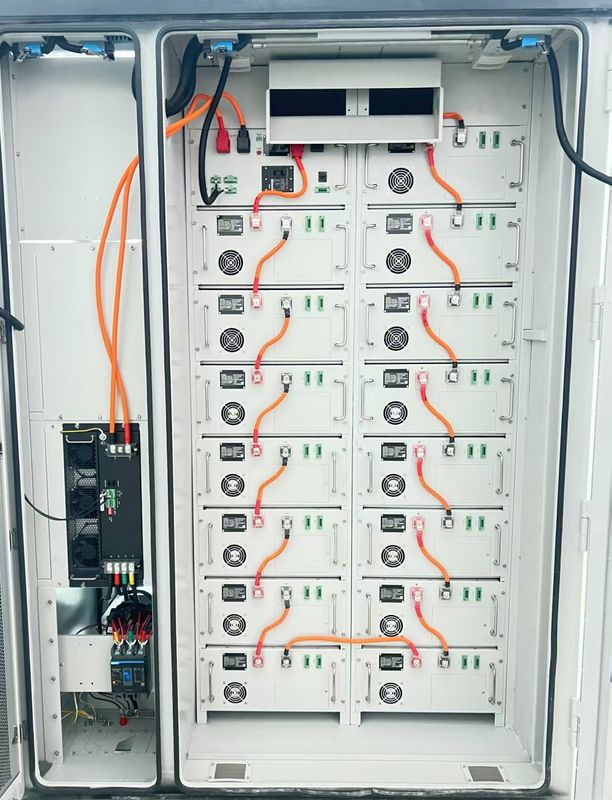

It uses a two-tier architecture, with cells, modules, and systems forming a complete communication and management system. It has a two-tier architecture in parallel. It has the functions of remote data acquisition, analysis, control, alarm, and protection.
Lithium iron phosphate batteries are compliant with the CE standard.
Product safety is ensured through features such as:
The batteries are equipped with Level 3 fire protection and have a direct parallel connection between clusters. With 3 or more clusters in parallel, there is also a fault exit mechanism in place for added safety. Furthermore, the batteries offer remote monitoring and maintenance functions, making them suitable for use in both indoor and outdoor environments.
Suitable for a variety of mainstream hybrid inverters
Suitable for DC loads
Energy storage converters
Suitable for inverters
Special battery applications
Product Customization Services for the BESS Battery Energy Storage System:
Brand Name: QIYUAN
Model Number: EST100KW-215KWH
Place Of Origin: China
Certification: UN38.3, IEC
Minimum Order Quantity: 1
Packaging Details: Container/Enclosure
Supply Ability: 5 Units/Month
Warranty: 5 Years
Application: Renewable Energy Integration, Grid Stabilization, Backup Power
Weight: Varies Depending On Model
Battery: LiFePo4
Voltage: Varies Depending On Model
EST050512- 100WP |
EST100512- 200WP |
EST160512- 200WP |
EST241768- 200WP |
|
Battey parameters |
||||
Rated Voltage |
512VDC |
512VDC |
512VDC |
768VDC |
Capacity |
51KWH |
102KWH |
160KWH |
241KWH |
Charging voltage |
552~560VDC |
552~560VDC |
552~560VDC |
828~840VDC |
Discharge voltage |
448~576VDC |
448~576VDC |
448~576VDC |
672~864VDC |
Max charging current |
100A |
150A |
150A |
150A |
Max discharging current |
120A |
200A |
200A |
200A |
Battery cycles |
4000 |
4000 |
6000 |
6000 |
DOD |
80% |
|||
System parameters |
||||
Working temperature |
-30~50℃(derate above 50℃) |
|||
Storage temperature |
0~40℃ |
|||
Humidity |
0~95% no condensation |
|||
Control mode |
EMS and remote control |
|||
Cooling |
Smart HVAC |
|||
Fire protection system |
Module-level aerosol / heptafluoropropane |
|||
System protection |
With an emergency power-off protection function. |
|||
Installation / IP level |
Outdoor / IP54 |
|||
Communication |
Ethernet / CAN / RS485 |
|||
Altitude |
2000m,derate above 2000m |
|||
Dimensions |
800*1200*2200 |
1300*1200*2000 |
1300*1200*2300 |
|
Weight |
750KG |
1100KG |
1450KG |
2050KG |
Certification |
UN38.3 |
|||
Standards |
Meets IEC62619 ICE61000 |
