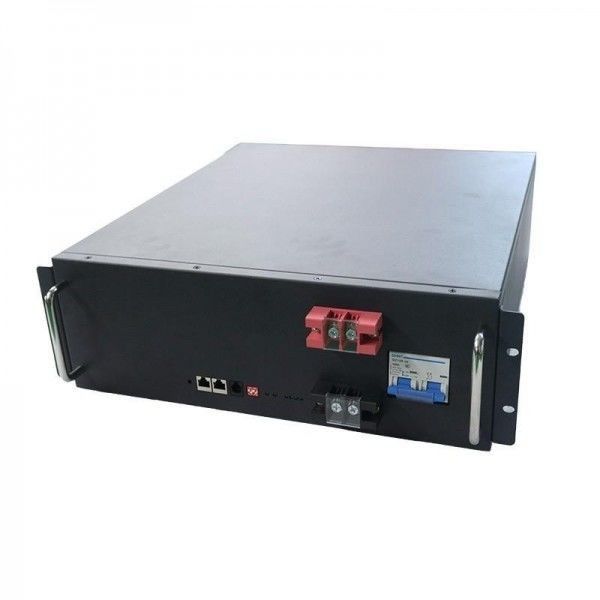

48V 50AH Telecom Solar Power Systems Lifepo4 Power Backup System

I'm Online Chat Now

48V 50AH Telecom Solar Power Systems Lifepo4 Power Backup System

48V 50AH Telecom Solar Power Systems Lifepo4 Power Backup System
48V 50AH Telecom Solar Power Systems Lifepo4 Power Backup System

Large Image :  48V 50AH Telecom Solar Power Systems Lifepo4 Power Backup System

Product Details:
Place of Origin: China
Brand Name: Qiyuan
Certification: CE, IEC, MSDS, UN38.3
Model Number: TJZ51.2-50T
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD/CNY, Unit
Packaging Details: Carton packing
Delivery Time: 1-2 months
Supply Ability: 500 set per month

48V 50AH Telecom Solar Power Systems Lifepo4 Power Backup System

Description
Usage: Telecom,emergency Maintenance Type: Maintenance-free
Voltage: 51.2v Nominal Capacity: 50AH
Warranty: 3 Years Color: Black,Grey
Application: Telecom / Energy Storage / Electrical System Terminal: Cooper
Product Name: Best Popular 48v 100ah FT Telecom Battery Systems Design Life: 8-10 Years
Oem Order: Acceptable
Highlight:

48v telecom solar power systems

,

50AH telecom solar power systems

,

48v lifepo4 battery backup

Features:

  • Applicable to all kinds of telecommunication stations;
  • Use high stability lithium iron phosphate batteries, passed CE, UL certification, safe and reliable;
  • With voltage, current, temperature detection and protection function and short circuit protection function, as well as the meter function;
  • Wide working temperature range, the discharge temperature range can reach to 20 ℃ to 50 ℃;
  • On-site sleep and wake up, and remote communication wake up function;
  • LCD and LED display functions available;
  • Dry contact, auxiliary contact detection function;
  • Charging current limit and pre-charge functions, capable of parallel with multiple units (compatible with old & new batteries), can be customized to parallel with lead-acid batteries;
Model TJZ51.2-100 TJZ51.2-50 TJZ51.2-100H TJZ48-100H
Capacity WH 5120 2560 5120 4800
Rated voltage V 51.2 51.2 48
Charging current A 100 50 100 100
Charging current limit A 10/20 5/10 10/20 10/20
Discharging current A 100 50 100 100
Max discharging current A 3min 120 60 120 120
Charging voltage V 57.6 57.6 57.6 54
Protection voltage V 40 40 40 37.5
Display LED(LCD optional)
Cooling Natural air
Protection level IP40
Relative humidity 0~95%
Working temperature Charge 0~45℃,discharge -20~50℃
CAN Configurable
RS485 Configurable
Noise 0dB
Parallel application Support
Structure Rack design
Dimension mm 482*420*132 482*380*132 482*420*132 482*420*132
