100ah 12v LFP Battery Portable ABS 12V Lithium Battery

100ah 12v LFP Battery Portable ABS 12V Lithium Battery
100ah 12v LFP Battery Portable ABS 12V Lithium Battery

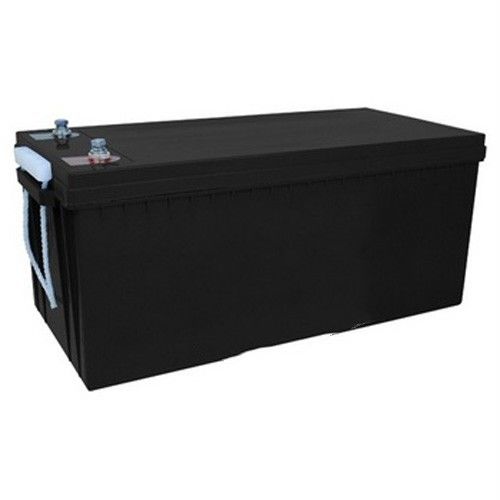

Large Image :  100ah 12v LFP Battery Portable ABS 12V Lithium Battery

Product Details:
Place of Origin: China
Brand Name: Qiyuan
Certification: CE, IEC, MSDS, UN38.3
Model Number: QYP12-100
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton packing
Delivery Time: 1 months
Payment Terms: L/C, T/T
Supply Ability: 10000 set per month
Contact Now

100ah 12v LFP Battery Portable ABS 12V Lithium Battery

Description
Battery Type: LFP Rated Voltage: 12.8V
Rated Capacity: 7.2~200AH Weight: 1-30KG
Cycle Life: >2000 Times Application: Toys, Power Tools, Home Appliances, Camping, RV
Enclosure Material: ABS Protection Level: IP65
Highlight:

100ah 12v LFP Battery

,

12v LFP Battery portable

,

ABS 12V Lithium Battery

12V 100AH LFP Battery Portable Battery 12V Lithium Battery

Product Paramenters
ELECTRICAL PERFORMANCE
Nominal Voltage
12.8 V
Nominal Capacity
7.2 Ah
10 Ah
50 Ah
100Ah
200 Ah
Capacity @ 20A
300 min
Energy
92 Wh
138 Wh
640 Wh
1280 Wh
2560 Wh
Resistance
≤90 mΩ @ 50% SOC
≤40 mΩ @ 50% SOC
≤25 mΩ @ 50% SOC
≤10 mΩ @ 50% SOC
≤8 mΩ @ 50% SOC
Self Discharge
<3% / Month
Cells
Cylindrical
CHARGE PERFORMANCE
Recommended Charge Current
1.5 A
2.0 A
10 A
20 A
40 A
Maximum Charge Current
7.2 A
10 A
50 A
100 A
100 A
Recommended Charge Voltage
14.6 V
BMS Charge Cut-Off Voltage
<15.6 V (3.9V/Cell)
Reconnect Voltage
>14.4 V (3.6V/Cell)
Balancing Voltage
<14.4 V (3.6V/Cell)
Maximum Batteries in Series
4
6
4
4
4
DISCHARGE PERFORMANCE
Maximum Continuous Discharge Current
15 A
15 A
50 A
100 A
150 A
Peak Discharge Current
30 A (3s)
30 A (3s)
100 A (3s)
200 A (3s)
300 A (3s)
BMS Discharge Cut-Off Current
45 A ±5 A (31 ms)
45 A ± 5 A (31 ms)
150 A ± 5 A (31ms)
300 A ±10 A (31ms)
450 A ±20 A (31ms)
Recommended Low Voltage Disconnect
11.0 V (2.75V/Cell)
BMS Discharge Cut-Off Voltage
>10.0 V (2s) (2.5V/Cell)
>8.0 V (2s) (2.0V/Cell)
>10.0 V (2s) (2.5V/Cell)
>8.0 V (2s) (2.0V/Cell)
>8.0 V (3s) (2.0V/Cell)
Reconnect Voltage
>11.2 V (2.8V/Cell)
>10.0 V (2.5V/Cell)
>11.2 V (2.8V/Cell)
>10 V (2.5V/Cell)
>10.8 V (2.7V/Cell)
Short Circuit Protection
250 ~ 500 μs
MECHANICAL PERFORMANCE
Dimension (L x W x H)
151 x 65 x 100 mm
151 x 99 x 101 mm
198 x 166 x 176 mm
329 x 172 x 225 mm,13.0 x 6.8 x 8.8”
520 x 268x 228 mm,20.5 x 10.6 x 9.0”
Approx. Weight
2.0 lbs (0.9 kg)
2.9 lbs (1.3 kg)
13.9 lbs (6.3 kg)
27.8 lbs (12.6 kg)
56.9 lbs (25.8 kg)
Terminal Type
F2
F2
T11
T11
T11
Terminal Torque


80 ~ 100 in-lbs (9 ~ 11 N-m)
80 ~ 100 in-lbs (9 ~ 11 N-m)
80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material
ABS
Enclosure Protection
IP65
TEMPERATURE PERFORMANCE
Discharge Temperature
-4 ~ 131 ºF (-20 ~ 55 ºC)
-4 ~ 140 ºF (-20 ~ 60 ºC)
-4 ~ 131 ºF (-20 ~ 55 ºC)
-4 ~ 131 ºF (-20 ~ 55 ºC)
-4 ~ 149 ºF (-20 ~ 65 ºC)
Charge Temperature
32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature
23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off
149 ºF (65 ºC)
149 ºF (65 ºC)
149 ºF (65 ºC)
149 ºF (65 ºC)
167 ºF (75 ºC)
Reconnect Temperature
131 ºF (55 ºC)
131 ºF (55 ºC)
131 ºF (55 ºC)
131 ºF (55 ºC)
149 ºF (65 ºC)
COMPLIANCE
Certifications
CE (battery)
UN38.3 (battery)
UL1642 & IEC62133 (cells)
Shipping Classification
UN 3480, CLASS 9

Tag:

7.2ah lifepo4 battery pack 12v,

200ah lifepo4 battery pack 12v,

ABS lithium ion rv battery
