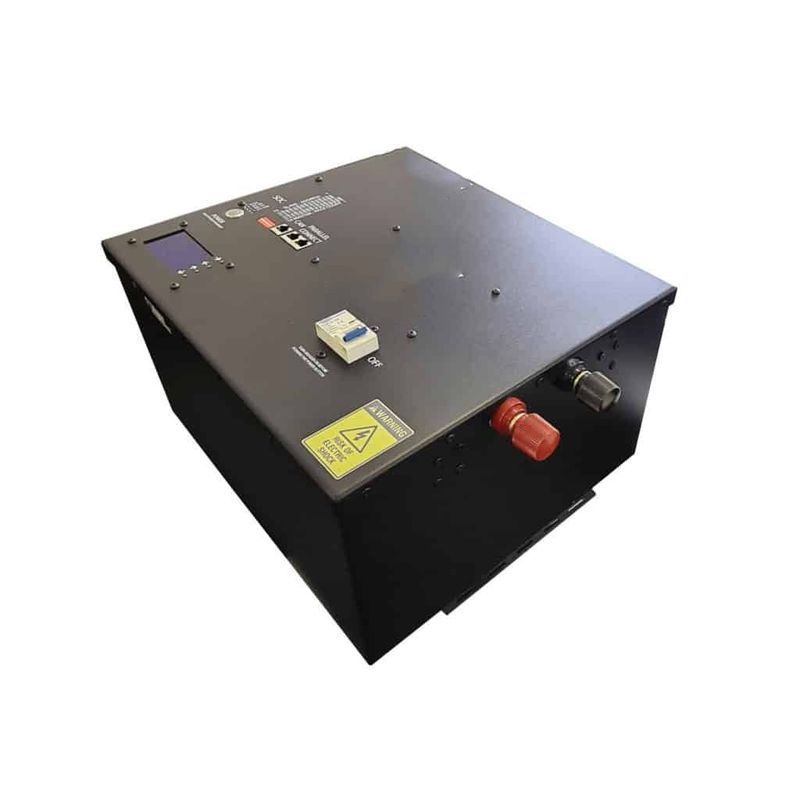

Backup Lifepo4 UPS Battery 51.2V 100ah Lithium Power Pack

Backup Lifepo4 UPS Battery 51.2V 100ah Lithium Power Pack
Backup Lifepo4 UPS Battery 51.2V 100ah Lithium Power Pack

Large Image :  Backup Lifepo4 UPS Battery 51.2V 100ah Lithium Power Pack

Product Details:
Place of Origin: China
Brand Name: Qiyuan
Certification: CE, IEC, MSDS, UN38.3
Model Number: QYU51.2-100
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD/CNY, Unit
Packaging Details: wooden case
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500 set per month
Contact Now

Backup Lifepo4 UPS Battery 51.2V 100ah Lithium Power Pack

Description
Battery Type: LFP Battery Rated Voltage: 51.2V
Life Cycle: 3000 Times Installation: Rack/tower
Application: UPS System, Back Up Power OEM/customization: Acceptable
Highlight:

backup Lifepo4 UPS Battery

,

51.2v lithium power pack

,

100ah lithium power pack

Product Features:

  • High ratio lithium iron phosphate batteries, high safety performance; Lithium iron phosphate battery has UL, CE certification;
  • Modularization design, lightweight, optimized footprint;
  • Lithium battery system with voltage, current, temperature monitoring and management functions;
  • Supports high current charge;
  • Sleep and wake up function;
  • Screen display, can acquire the battery information in real time;
  • Can be directly connected to the ring and CAN communication;
  • With automatic fire extinguishing equipment;
  • Blind charge and discharge, blind self-protection function;
  • City grid automatic start function;
  • Supports neutral line connection and conventional installation;
  • Supports customized for parallel use with lead acid batteries
Rated Capacity
100Ah
25℃±3℃,0.2C constant current discharging,40.5V cut off
Rated Voltage
48V

Standard Charge Current
20A(0.2C)
0.2C CC(Constant current)charge to 54.0V,then CV(constant voltage)charge, cut off when charging current≤0.05C.
Max Continuous Charge Current
50A(0.5C)
Do not exceed 0.5C
Max Charge Current
100A(1C)
Requirement: 1 cycle/day
Charge Cut Off Voltage
54.0V
Equalized Charge Voltage:53.5V Floating Charge Voltage:51.0V
Standard Discharge Current
20A(0.2C)
0.2C CC(Constant Current)discharge, cut off @40.5V.
Max Continuous Discharge Current
50A(0.5C)
Continuous 50Adischarge
Max Discharge Current
100A(1C)
Requirement: 1 cycle/day
Discharge Cut Off Voltage
40.5V
2.7V/Cell, 40.5V / Pack.
Max Pulse Discharge Current
130A
25℃±3℃,≤1s
Working Temperature (charge)
0℃~55℃
0℃-10℃:continuous 20A(max)charge 10℃-45℃: continuous 50A(max)charge 45℃-55℃:continuous 20A(max)charge
Working Temperature (discharge)
-20℃~55℃
Battery can work at specified temperature range with capacity loss in tolerance.
Storage temperature
-20℃～ 45℃
(short term) Within 1 month
Storage temperature
0℃～35℃
(long term) Within 1 year
Battery Weight
About 45Kg

Battery Impendence
≤30mΩ
DC Internal Resistance
Charge/Discharge Efficiency
≥95%
Charge/discharge efficiency in Wh (round trip efficiency) at 0.2C charge and discharge current,25℃.
